The static/GitLab shim allows GitLab CI to push updates on websites hosted in the static mirror system.

[[TOC]]

Tutorial

Deploying a static site from GitLab CI

First, make sure the site builds in GitLab CI. A build stage MUST be used. It should produce the artifacts used by the jobs defined in the deploy stage which are provided in the [static-shim-deploy.yml template][]. How to build the website will vary according to the site, obviously. See the Hugo build instructions below for that specific generator.

TODO: link to documentation on how to build Lektor sites in GitLab CI.

A convenient way to preview website builds and ensure builds are working correctly in GitLab CI is to deploy to GitLab Pages. See the instructions on publishing GitLab pages within the GitLab documentation.

When the build stage is verified to work correctly, include the static-shim-deploy.yml template in .gitlab-ci.yml with a snippet like this:

variables:
  SITE_URL: example.torproject.org

include:
  project: tpo/tpa/ci-templates
  file: static-shim-deploy.yml

The SITE_URL parameter must reflect the FQDN of the website as defined in the static-components.yml file.

For example, for https://status.torproject.org, the .gitlab-ci.yml file looks like this (build stage elided for simplicity):

variables:
  SITE_URL: status.torproject.org

include:
  project: tpo/tpa/ci-templates
  file: static-shim-deploy.yml

First, create the production deployment environment. Navigate to the project's Deploy -> Environments section (previously Settings -> Deployments -> Environments) and click Create an environment. Enter production in the Name field and the production URL in External URL (eg. https://status.torproject.org). Leave the GitLab agent field empty.

Next, you need to set an SSH key in the project. First, generate a password-less key locally:

ssh-keygen -f id_rsa -P "" -C "static-shim deploy key"

Then in Settings -> CI/CD -> Variables, pick Add variable, with the following parameters:

  • Key: STATIC_GITLAB_SHIM_SSH_PRIVATE_KEY
  • Value: the content of the id_rsa file, above (yes, it's the private key)
  • Type: file
  • Environment scope: production
  • Protect variable: checked
  • Masked variable: unchecked
  • Expand variable reference: unchecked (not really necessary, but a good precaution)

Then the public part of that key needs to be added in Puppet. This can only be done by TPA, so file a ticket there if you need assistance. For TPA, see below for the remaining instructions.

Once you have sent the public key to TPA, you MUST destroy your local copy of the key, to avoid any possible future leaks.

You can commit the above changes to the .gitlab-ci.yml file, but TPA needs to do its magic for the deploy stage to work.

Once deployments to the static mirror system are working, the pages job can be removed or disabled.

Working with Review Apps

Review Apps is a GitLab feature that facilitates previewing changes in project branches and Merge Requests.

When a new branch is pushed to the project, GitLab will automatically run the build process on that branch and deploy the result, if successful, to a special URL under review.torproject.net. If a MR exists for the branch, a link to that URL is displayed in the MR page header.

If additional commits are pushed to that branch, GitLab will rerun the build process and update the deployment at the corresponding review.torproject.net URL. Once the branch is deleted, which happens for example if the MR is merged, GitLab automatically runs a job to cleanup the preview build from review.torproject.net.

This feature is automatically enabled when static-shim-deploy.yml is used. To opt-out of Review Apps, define SKIP_REVIEW_APPS: 1 in the variables key of .gitlab-ci.yml.

Note that the REVIEW_STATIC_GITLAB_SHIM_SSH_PRIVATE_KEY needs to be populated in the project for this to work. This is the case for all projects under tpo/web. The public version of that key is stored in Puppet's hiera/common/staticsync.yaml, in the review.torproject.net key of the staticsync::gitlab_shim::ssh::sites hash.

The active environments linked to Review Apps can be listed by navigating to the project page in Deployments -> Environments.

An HTTP authentication is required to access these environments: the username is tor-www and the password is blank. These credentials should be automatically present in the URLs used to access Review Apps from the GitLab interface.

Please note that Review Apps do not currently work for Merge Requests created from personal forks. This is because personal forks do not have access to the SSH private key required to deploy to the static mirror system, for security reasons. Therefore, it's recommended that web project contributors be granted Developer membership so they're allowed to push branches in the canonical repository.

Finally, Review Apps are meant to be transient. As such, they are auto-stopped (deleted) after 1 week without being updated.

Working with a staging environment

Some web projects have a specific staging area that is separate from GitLab Pages and review.torproject.net. Those sites are deployed as subdomains of *.staging.torproject.net on the static mirror system. For example, the staging URL for blog.torproject.org is blog.staging.torproject.net.

Staging environments can be useful in various scenarios, such as when the build job for the production environment is different than the one for Review Apps, so a staging URL is useful to be able to preview a full build before being deployed to production. This is especially important for large websites like www.torproject.org and the blog which use the "partial build" feature in Lego to speed up the review stage. In that case, the staging site is a full build that takes longer, but then allows prod to be launched quicker, after a review of the full build.

For other sites, the above and automatic review.torproject.net configuration is probably sufficient.

To enable a staging environment, first a DNS entry must be created under *.staging.torproject.net and pointed to static.torproject.org. Then some configuration changes are needed in Puppet so the necessary symlinks and vhosts are created on the static web mirrors. These steps must be done by TPA, so please open a ticket. For TPA, look at commits 262f3dc19c55ba547104add007602cca52444ffc and 118a833ca4da8ff3c7588014367363e1a97d5e52 for examples on how to do this.

Lastly, a STAGING_URL variable must be added to .gitlab-ci.yml with the staging domain name (eg. blog.staging.torproject.net) as its value.

Once this is in place, commits added the the default (main) branch will automatically trigger a deployment to the staging URL and a manual job for deployment to production. This manual job must then be triggered by hand after the staging deployment is QA-cleared.

An HTTP authentication is required to access staging environments: the username is tor-www and the password is blank. These credentials should be automatically present in the Open and View deployment links in the GitLab interface.

How-to

Adding a new static site shim in Puppet

The public key mentioned above should be added in the tor-puppet.git repository, in the hiera/common/staticsync.yaml file, in the staticsync::gitlab_shim::ssh::sites hash.

There, the site URL is the key and the public key (only the key part, no ssh-rsa prefix or comment suffix) is the value. For example, this is the entry for status.torproject.org:

staticsync::gitlab_shim::ssh::sites:
  status.torproject.org: "AAAAB3NzaC1yc2EAAAADAQABAAABgQC3mXhQENCbOKgrhOWRGObcfqw7dUVkPlutzHpycRK9ixhaPQNkMvmWMDBIjBSviiu5mFrc6safk5wbOotQonqq2aVKulC4ygNWs0YtDgCtsm/4iJaMCNU9+/78TlrA0+Sp/jt67qrvi8WpLF/M8jwaAp78s+/5Zu2xD202Cqge/43AhKjH07TOMax4DcxjEzhF4rI19TjeqUTatIuK8BBWG5vSl2vqDz2drbsJvaLbjjrfbyoNGuK5YtvI/c5FkcW4gFuB/HhOK86OH3Vl9um5vwb3DM2HVMTiX15Hw67QBIRfRFhl0NlQD/bEKzL3PcejqL/IC4xIJK976gkZzA0wpKaE7IUZI5yEYX3lZJTTGMiZGT5YVGfIUFQBPseWTU+cGpNnB4yZZr4G4o/MfFws4mHyh4OAdsYiTI/BfICd3xIKhcj3CPITaKRf+jqPyyDJFjEZTK/+2y3NQNgmAjCZOrANdnu7GCSSz1qkHjA2RdSCx3F6WtMek3v2pbuGTns="

At this point, the deploy job should be able to rsync the content to the static shim, but the deploy will still fail because the static-component configuration does not match and the static-update-component step will fail.

To fix this, the static-component entry should be added (or modified, if it already exists, in modules/staticsync/data/common.yaml) to point to the shim. This, for example, is how research is configured right now:

research.torproject.org:
  master: static-master-fsn.torproject.org
  source: static-gitlab-shim.torproject.org:/srv/static-gitlab-shim/research.torproject.org/public

It was migrated from Jenkins with a commit like this:

modified   modules/staticsync/data/common.yaml
@@ -99,7 +99,7 @@ components:
     source: staticiforme.torproject.org:/srv/research.torproject.org/htdocs-staging
   research.torproject.org:
     master: static-master-fsn.torproject.org
-    source: staticiforme.torproject.org:/srv/research.torproject.org/htdocs
+    source: static-gitlab-shim.torproject.org:/srv/static-gitlab-shim/research.torproject.org/public
   rpm.torproject.org:
     master: static-master-fsn.torproject.org
     source: staticiforme.torproject.org:/srv/rpm.torproject.org/htdocs

After commit and push, Puppet needs to run on the shim and master, in the above case:

for host in static-gitlab-shim static-master-fsn ; do
    ssh $host.torproject.org puppet agent --test
done

The next pipeline should now succeed in deploying the site in GitLab.

If the site is migrated from Jenkins, make sure to remove the old Jenkins job and make sure the old site is cleared out from the previous static source:

ssh staticiforme.torproject.org rm -rf /srv/research.torproject.org/

Typically, you will also want to archive the git repository if it hasn't already been migrated to GitLab.

Building a Hugo site

Normally, you should be able to deploy a Hugo site by including the template and setting a few variables. This .gitlab-ci.yml file, taken from the status.tpo .gitlab-ci.yml, should be sufficient:

image: registry.gitlab.com/pages/hugo/hugo_extended:0.65.3

variables:
  GIT_SUBMODULE_STRATEGY: recursive
  SITE_URL: status.torproject.org
  SUBDIR: public/

include:
  project: tpo/tpa/ci-templates
  file: static-shim-deploy.yml

build:
  stage: build
  script:
    - hugo
  artifacts:
    paths:
      - public

# we'd like to *not* rebuild hugo here, but pages fails with:
#
# jobs pages config should implement a script: or a trigger: keyword
pages:
  stage: deploy
  script:
    - hugo
  artifacts:
    paths:
      - public
  only:
    - merge_requests

See below if this is an old hugo site, however.

Building an old Hugo site

Unfortunately, because research.torproject.org was built a long time ago, newer Hugo releases broke its theme and the newer versions (tested 0.65, 0.80, and 0.88) all fail in one way or another. In this case, you need to jump through some hoops to have the build work correctly. I did this for research.tpo, but you might need a different build system or Docker images:

# use an older version of hugo, newer versions fail to build on first
# run
#
# gohugo.io does not maintain docker images and the one they do
# recommend fail in GitLab CI. we do not use the GitLab registry
# either because we couldn't figure out the right syntax to get the
# old version from Debian stretch (0.54)
image: registry.hub.docker.com/library/debian:buster

include:
  project: tpo/tpa/ci-templates
  file: static-shim-deploy.yml

variables:
  GIT_SUBMODULE_STRATEGY: recursive
  SITE_URL: research.torproject.org
  SUBDIR: public/

build:
  before_script:
    - apt update
    - apt upgrade -yy
    - apt install -yy hugo
  stage: build
  script:
    - hugo
  artifacts:
    paths:
      - public

# we'd like to *not* rebuild hugo here, but pages fails with:
#
# jobs pages config should implement a script: or a trigger: keyword
#
# and even if we *do* put a dummy script (say "true"), this fails
# because it runs in parallel with the build stage, and therefore
# doesn't inherit artifacts the way a deploy stage normally would.
pages:
  stage: deploy
  before_script:
    - apt update
    - apt upgrade -yy
    - apt install -yy hugo
  script:
    - hugo
  artifacts:
    paths:
      - public
  only:
    - merge_requests

Manually delete a review app

If, for some reason, a stop-review job did not run or failed to run, the review environment will still be on the static-shim server. This could use up precious disk space, so it's preferable to remove it by hand.

The first thing is to find the review slug. If, for example, you have a URL like:

https://review.torproject.org/tpo/tpa/status-site/review-extends-8z647c

The slug will be:

review-extends-8z647c

Then you need to remove that directory on the static-gitlab-shim server. Remember there is a subdir to squeeze in there. The above URL would be deleted with:

rm -rf /srv/static-gitlab-shim/review.torproject.net/public/tpo/tpa/status-site/review-extends-8z647c/

Then sync the result to the mirrors:

static-update-component review.torproject.net

Converting a job from Jenkins

NOTE: this shouldn't be necessary anymore, as Jenkins was retired at the end of 2021. It is kept for historical purposes.

This is how to convert a given website from Jenkins to GitLab CI:

Upstream GitLab also has generic documentation on how to migrate from Jenkins which could be useful for us.

Pager playbook

A typical failure will be that users complains that their deploy_static job fails. We have yet to see such a failure occur, but if it does, users should provide a link to the Job log, which should provide more information.

Disaster recovery

Revert a deployment mistake

It's possible to quickly revert to a previous version of a website via GitLab Environments.

Simply navigate to the project page -> Deployments -> Environments -> production. Shown here will be all past deployments to this environment. To the left of each deployment is a Rollback environment button. Clicking this button will redeploy this version of the website to the static mirror system, overwriting the current version.

It's important to note that the rollback will only work as long as the build artifacts are available in GitLab. By default, artifacts expire after two weeks, so its possible to rollback to any version within two weeks of the present day. Unfortunately, at the moment GitLab shows a rollback button even if the artifacts are unavailable.

Server lost

The service is "cattle" in that it can easily be rebuilt from scratch if the server is completely lost. Naturally it strongly depends on GitLab for operation. If GitLab would fail, it should still be possible to deploy sites to the static mirror system by deploying them by hand to the static shim and calling static-update-component there. It would be preferable to build the site outside of the static-shim server to avoid adding any extra packages we do not need there.

The status site is particularly vulnerable to disasters here, see the status-site disaster recovery documentation for pointers on where to go in case things really go south.

GitLab server compromise

Another possible disaster that could happen is a complete GitLab compromise or hostile GitLab admin. Such an attacker could deploy any site they wanted and therefore deface or sabotage critical websites, introducing hostile code in thousands of users. If such an event would occur:

  1. remove all SSH keys from the Puppet configuration, specifically in the staticsync::gitlab_shim::ssh::sites variable, defined in hiera/common.yaml.

  2. restore sites from a known backup. the backup service should have a copy of the static-shim content

  3. redeploy the sites manually (static-update-component $URL)

The static shim server itself should be fairly immune to compromise as only TPA is allowed to login over SSH, apart from the private keys configured in the GitLab projects. And those are very restricted in what they can do (i.e. only rrsync and static-update-component).

Deploy artifacts manually

If a site is not deploying normally, it's still possible to deploy a site by hand by downloading and extracting the artifacts using the static-gitlab-shim-pull script.

For example, given the Pipeline 13285 has job 38077, we can tell the puller to deploy in debugging mode with this command:

sudo -u static-gitlab-shim /usr/local/bin/static-gitlab-shim-pull --artifacts-url https://gitlab.torproject.org/tpo/tpa/status-site/-/jobs/38077/artifacts/download --site-url status.torproject.org --debug

The --artifacts-url is the Download link in the job page. This will:

  1. download the artifacts (which is a ZIP file)
  2. extract them in a temporary directory
  3. rsync --checksum them to the actual source directory (to avoid spurious timestamp changes)
  4. call static-update-component to deploy the site

Note that this script was part of the webhook implementation and might eventually be retired if that implementation is completely removed. This logic now lives in the [static-shim-deploy.yml template][].

Reference

Installation

A new server can be built by installing a regular VM with the staticsync::gitlab_shim class. The server also must have this line in its LDAP host entry:

allowedGroups: mirroradm

SLA

There is no defined SLA for this service right now. Websites should keep working even if it goes down as it is only a static source, but, during downtimes, updates to websites are not possible.

Design

The static shim was built to allow GitLab CI to deploy content to the static mirror system.

They way it works is that GitLab CI jobs (defined in the .gitlab-ci.yml file) build the site and then push it to a static source (currently static-gitlab-shim.torproject.org) with rsync over SSH. Then the CI job also calls the static-update-component script for the master to pull the content just like any other static component.

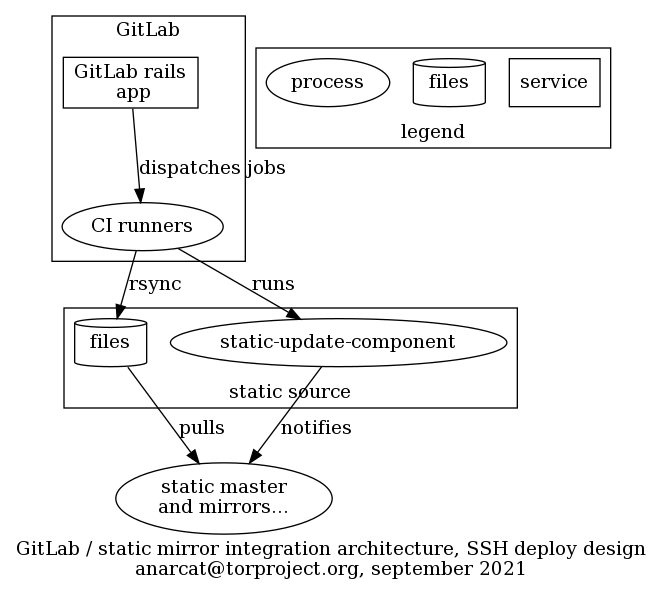

SSH deploy design of the static-shim

The sites are deployed on a separate static-source to avoid adding complexity to the already complicated, general purpose static source (staticiforme). This has the added benefit that the source can be hardened in the sense that access is restricted to TPA (which is not the case of staticiforme).

The mapping between webhooks and static components is established in Puppet, which writes the SSH configuration, hard-coding the target directory which corresponds to the source directory in the modules/staticsync/data/common.yaml file of the tor-puppet.git repository. This is done to ensure that a given GitLab project only has access to a single site and cannot overwrite other sites.

This involves that each site configured in this way must have a secret token (in GitLab) and configuration (in Hiera) created by TPA in Puppet. The secret token must also be configured in the GitLab project. This could be automated by the judicious use of the GitLab API using admin credentials, but considering that new sites are not created very frequently, it is currently be done by hand.

The SSH key is generated by the user, but that could also be managed by Trocla, although only the newer versions support that functionality, and that version is not currently available in Debian.

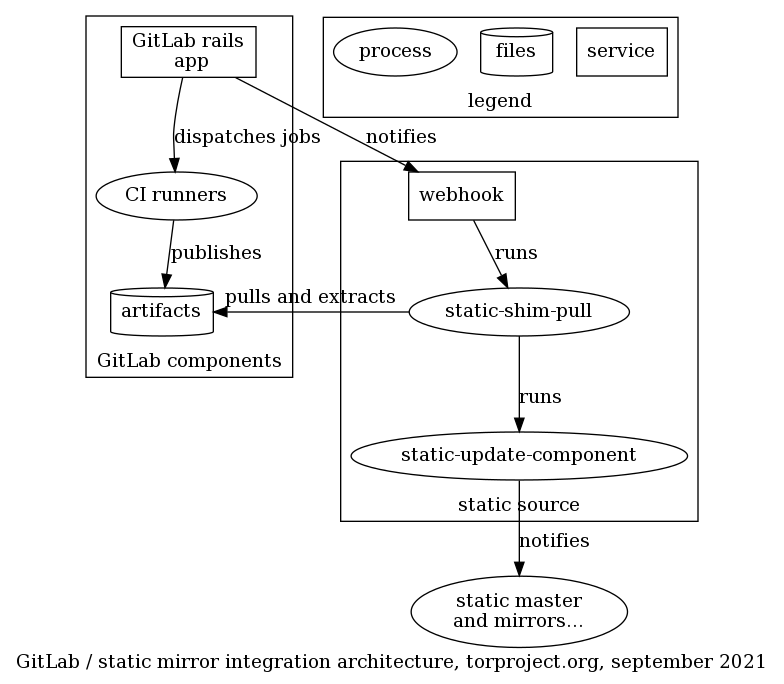

A previous design involved a webhook written in Python, but now most of the business logic resides in a [static-shim-deploy.yml template][] template which is basically a shell script embedded in a YAML file. (We have considered taking this out of the template and writing a proper Python script, but then users would have to copy that script over their repo, or clone a repo in CI, and that seems impractical.)

Another thing we considered is to set instance-level templates but it seems that feature is not available in GitLab's free software version.

The CI hooks are deployed by users, which will typically include the above template in their own .gitlab-ci.yml file.

Template variables

Variables used in the [static-shim-deploy.yml template][] which projects can override:

  • STATIC_GITLAB_SHIM_SSH_PRIVATE_KEY: SSH private key for deployment to the static mirror system, required for deploying to staging and production environments. This variable must be defined in each project's CI/CD variables settings and scoped to either staging or production environments.

  • REVIEW_STATIC_GITLAB_SHIM_SSH_PRIVATE_KEY: SSH private key for deployment to the reviews environment, AKA reviews.torproject.net. This variable is available by default to projects in the GitLab Web group. Projects outside of it must define it in their CI/CD variables settings and scoped to the reviews/* wildcard environment.

  • SITE_URL: (required) Fully-qualified domain name of the production deployment (eg. without leading https://).

  • STAGING_URL: (optional) Fully-qualified domain name of the staging deployment. When a staging URL is defined, deployments to the production environment are manual.

  • SUBDIR: (optional) Directory containing the build artifacts, by default this is set to public/.

Storage

Files are generated in GitLab CI as artifacts and stored there, which makes it possible for them to be deployed by hand as well. A copy is also kept on the static-shim server to make future deployments faster. We use rsync --checksum to avoid updating the timestamps even if the source file were just regenerated from scratch.

Authentication

The shim assumes that GitLab projects host a private SSH key and can access the shim server over SSH with it. Access is granted, by Puppet (tor-puppet.git repository, hiera/common.yaml file, in the staticsync::gitlab_shim::ssh::sites hash) only to a specific site.

The restriction is defined in the authorized_keys file, with restrict and command= options. The latter restricts the public key to only a specific site update, with a wrapper that will call static-update-component on the right component or rrsync which is rsync but limited to a specific directory. We also allow connections only from GitLab over SSH.

This implies that the SITE_URL provided by the GitLab CI job over SSH, whether it is for the rsync or static-update-component commands, is actually ignored by the backend. It is used in the job definition solely to avoid doing two deploys in parallel to the same site, through the GitLab resource_group mechanism.

The public part of that key should be set in the GitLab project, as a File variable called STATIC_GITLAB_SHIM_SSH_PRIVATE_KEY. This way the GitLab runners get access to the private key and can deploy those changes.

The impact of this is that a compromise on GitLab or GitLab CI can compromise all web sites managed by GitLab CI. While we do restrict what individual keys can do, a total compromise of GitLab could, in theory, leak all those private keys and therefore defeat those mechanisms. See the disaster recovery section for how such a compromise could be recovered from.

The GitLab runners, in turn, authenticate the SSH server through a instance-level CI/CD variable called STATIC_GITLAB_SHIM_SSH_HOST_KEYS which declares the public SSH host keys for the server. Those need to be updated if the server is re-deployed, which is unfortunate. An alternative might be to sign public keys with an SSH CA (e.g. this guide) but then the CA would also need to be present, so it's unclear that would be a benefit.

Issues

There is no issue tracker specifically for this project, File or search for issues in the team issue tracker with the ~static-shim label.

This service was designed in ticket 40364.

Maintainer, users, and upstream

The shim was written by anarcat and is maintained by TPA. It is used by all "critical" websites managed in GitLab.

Monitoring and testing

There is no specific monitoring for this service, other than the usual server-level monitoring. If the service should fail, users will notice because their pipelines start failing.

Good sites to test that the deployment works are https://research.torproject.org/ (pipeline link, not critical) or https://status.torproject.org/ (pipeline link, semi-critical).

Logs and metrics

Jobs in GitLab CI have their own logs and retention policies. The static shim should not add anything special to this, in theory. In practice it's possible some private key leakage occurs if a user would display the content of their own private SSH key in the job log. If they use the provided template, this should not occur.

We do not maintain any metrics on this service, other than the usual server-level metrics.

Backups

No specific backup procedure is necessary for this server, outside of the automated basics. In fact, data on this host is mostly ephemeral and could be reconstructed from pipelines in case of a total server loss.

As mentioned in the disaster recovery section, if the GitLab server gets compromised, the backup should still contain previous good copies of the websites, in any case.

Other documentation

Discussion

Overview

The static shim was built to unblock the Jenkins retirement project (TPA-RFC-10). A key blocker was that the static mirror system was strongly coupled with Jenkins: many high traffic and critical websites are built and deployed by Jenkins. Unless we wanted to completely retire the static mirror system (in favor, say, of GitLab Pages), we had to create a way for GitLab CI to deploy content to the static mirror system.

This section contains more in-depth discussions about the reasoning behind the project, discarded alternatives, and other ideas.

Goals

Note that those goals were actually written down once the server was launched, but they were established mentally before and during the deployment.

Must have

  • deploy sites from GitLab CI to the static mirror system
  • site A cannot deploy to site B without being explicitly granted permissions
  • server-side (i.e. in Puppet) access control (i.e. user X can only deploy site B)

Nice to have

  • automate migration from Jenkins to avoid manually doing many sites
  • reusable GitLab CI templates

Non-Goals

  • static mirror system replacement

Approvals required

TPA, part of TPA-RFC-10: Jenkins retirement.

Proposed Solution

We have decided to deploy sites over SSH from GitLab CI, see below for a discussion.

Cost

One VM, 20-30 hours of work, see tpo/tpa/team#40364 for time tracking.

Alternatives considered

This shim was designed to replace Jenkins with GitLab CI. The various options considered are discussed here, see also the Jenkins documentation and ticket 40364.

CI deployment

We considered using GitLab's CI deployment mechanism instead of webhooks, but originally decided against it for the following reasons:

  • the complexity is similar: both need a shared token (webhook secret vs SSH private key) between GitLab and the static source (the webhook design, however, does look way more complex than the deploy design, when you compare the two diagrams)

  • however, configuring the deployment variables takes more click (9 vs 5 in my count), and is slightly more confusing (e.g. what's "Protect variable"?) and possibly insecure (e.g. private key leakage if user forgets to click "Mask variable")

  • the deployment also requires custom code to be added to the .gitlab-ci.yml file. in the context where we are considering using GitLab pages to replace the static mirror system in the long term, we prefer to avoid adding custom stuff to the CI configuration file and "pretend" that this is "just like GitLab pages"

  • we prefer to open a HTTPS port than an SSH port to GitLab, from a security perspective, even if the SSH user would be protected by an proper authorized_keys. in the context where we could consider locking down SSH access to only jump boxes, it would require an exception and is more error prone (e.g. if we somehow forget the command= override, we open full shell access)

After trying the webhook deployment mechanism (below), we decided to go back to the deployment mechanism instead. See below for details on the reasoning, and above for the full design of the current deployment.

webhook deployment

A designed based on GitLab webhooks was established, with a workflow that goes something like this:

  1. user pushes a change to GitLab, which ...
  2. triggers a CI pipeline
  3. CI runner picks up the jobs and builds the website, pushes the artifacts back to GitLab
  4. GitLab fires a webhook, typically on pipeline events
  5. webhook receives the ping and authenticates against a configuration, mapping to a given static-component
  6. after authentication, the webhook fires a script (static-gitlab-shim-pull)
  7. static-gitlab-shim-pull parses the payload from the webhook and finds the URL for the artifacts
  8. it extracts the artifacts in a temporary directory
  9. it runs rsync -c into the local static source, to avoid resetting timestamps
  10. it fires the static-update-component command to propagate changes to the rest of the static-component system

A subset of those steps can be seen in the following design:

Design of the static-shim

The shim components runs on a separate static-source, called static-gitlab-shim-source. This is done to avoid adding complexity to the already complicated, general purpose static source (staticiforme). This has the added benefit that the source can be hardened in the sense that access is restricted to TPA (which is not the case of staticiforme).

The mapping between webhooks and static components is established in Puppet, which generates the secrets and writes it to the webhook configuration, along with the site_url which corresponds to the site URL in the modules/staticsync/data/common.yaml file of the tor-puppet.git repository. This is done to ensure that a given GitLab project only has access to a single site and cannot overwrite other sites.

This involves that each site configured in this way must have a secret token (in Trocla) and configuration (in Hiera) created by TPA in Puppet. The secret token must also be configured in the GitLab project. This could be automated by the judicious use of the GitLab API using admin credentials, but considering that new sites are not created very frequently, it could also be done by hand.

Unfortunately this design has two major flaws:

  1. webhooks are designed to be fast and short-lived: most site deployments take longer than the pre-configured webhook timeout (10 seconds) and therefore cannot be deployed synchronously, which implies that...

  2. webhook cannot propagate deployment errors back to the user meaningfully: even if they run synchronously, errors in webhooks do not show up in the CI pipeline, assuming the webhook manages to complete at all. if the webhook fails to complete in time, no output is available to the user at all. running asynchronously is even worse as deployment errors do not show up in GitLab at all and would require special monitoring by TPA, instead of delegating that management to users. It is possible to to see the list of recent webhook calls, in Settings -> Webhooks -> Edit -> Recent deliveries. But that is rather well-hidden.

Note that it may have been possible to change the 10 seconds timeout with:

gitlab_rails['webhook_timeout'] = 10

in the /etc/gitlab/gitlab.rb file (source). But static site deployments can take a while, so it's not clear at all we can actually wait for the full deployment.

In the short term, the webhook system has be used asynchronously (by removing the include-command-output-in-response parameter in the webhook config), but then the error reporting is even worse because the caller doesn't even know if the deploy succeeds or fails.

We have since moved to the deployment system documented in the design section.

GitLab "Integrations"

Another approach we briefly considered is to write an integration into GitLab. We found the documentation for this was nearly nonexistent. It also meant maintaining a bundle of Ruby code inside GitLab, which seemed impractical, at best.
